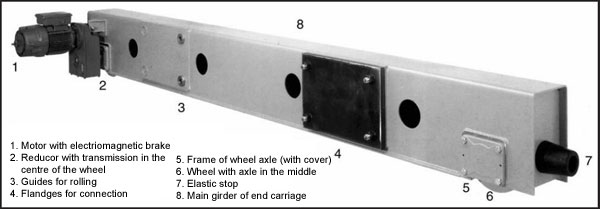

MISIA END CARRIAGES:

The MISIA end carriages are manufactured in Italy, with high specifications of safety and quality.

The movement is being transmited with axle in the centre of the wheel, the motors are 100% of Italian origing (double speed, smooth acceleration), and most parts that constitute the end carriage are removable and exchangeable. The dimensions are relatively limited, mainly in the height in order to it facilitates in cases where the beneficial height is small, something usual in the space [geranogefyron]. They are sold [komple] with flexible stop, flanges, screws, electricity motor &? [meiotira], etc. Naturally it is inside the specifications of E.[E] and allocates the all essential certificates.

Motors type is short-circuited.
IP protection is IP55 and they have insulation type F.

The possibility to combine every reducer with different motors allows for the achievent of many variable speeds.


The gearbox has been made from metal specially processed for extra toughness. The covers are beeing made from cast-iron and they are divided afterwards. As soon as they are sealed, the reducers are being lubricated for lifetime. The high mechanic precision is achieved with precise control at the process of assembly.
